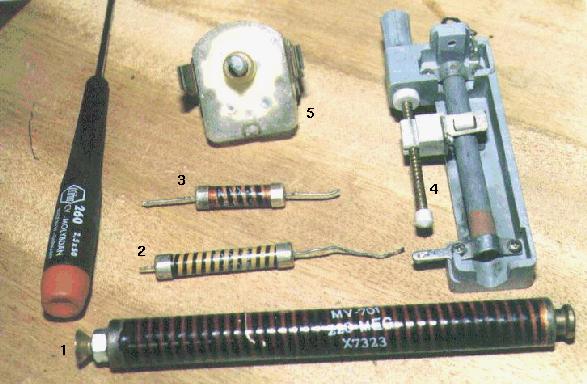

1: 220MOhm HV Resistor from some kind of old monitor
2: 200MOhm Resistor from TV
3: 5MOhm Resistor from TV
4: so-called "focus rod", high-resistance poti to adjust the electron
   beam focus, voltage around 8kV
5: another high-resistance poti for focussing
